A first look at the Network Editor

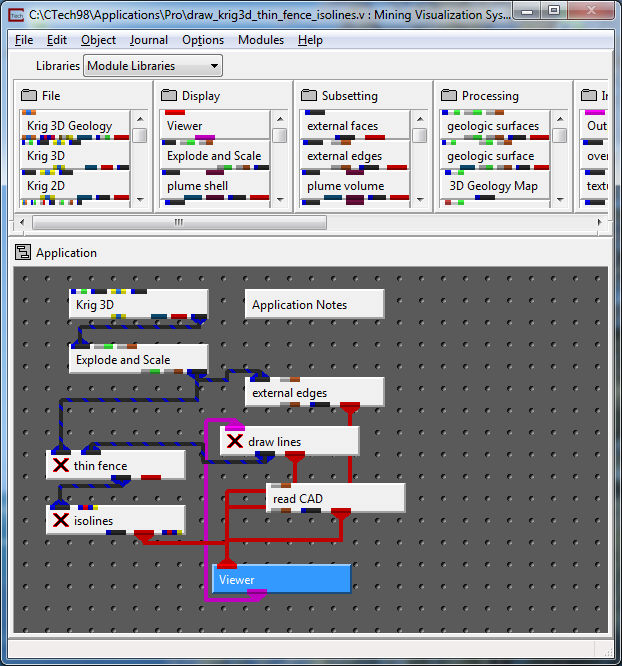

Here is the Network Editor. This graphic shows a more complex network than the one we will produce in this Workbook, but it is simple compared with many.

Note that in the application below, the modules with the have not yet run. In this application, these module are all dependent on the draw_lines module which allows you to draw the path which will be used to create fence diagrams.
