Explode and Scale Layer Controls

Explode_and_Scale Layer Controls

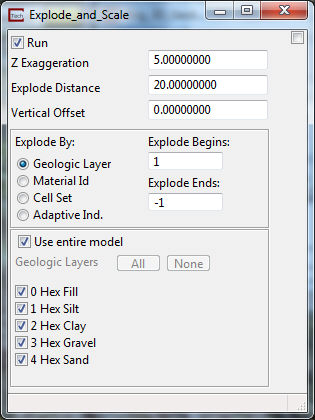

Select Explode_and_Scale’s menu

Note that you have toggles to control the visibility of each layer (they are named based on the material names in your .geo or .gmf file). Let’s turn off Use Entire Modelas well as the middle Clay layer.

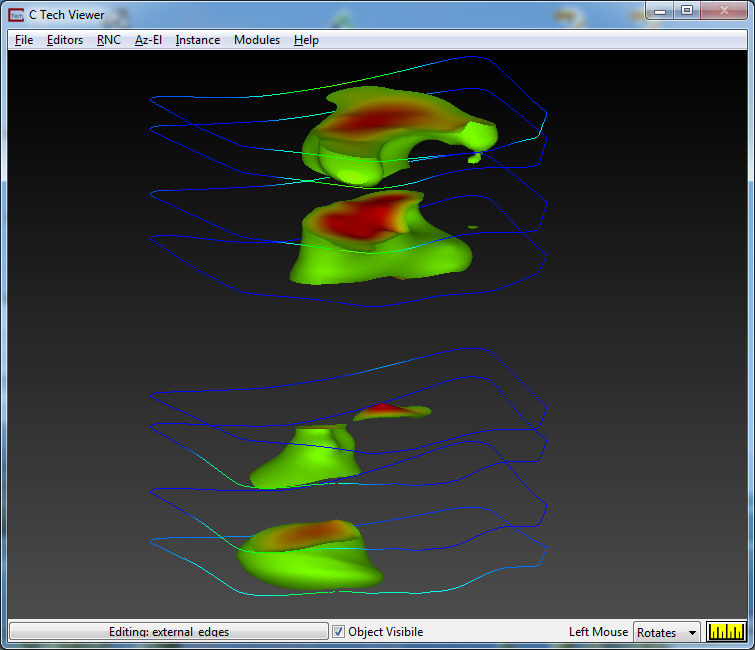

Your view should look like this:

If it does not, reset your view to 12 degree Elevation, Scale of 0.70 and 210 degree Azimuth.

To see the entire model’s external faces, turn the clay layer back on and set the SubsettingLevel in plume_shell to 0.001. You should now see:

Now that we have a model of the analyte (e.g. chemistry) mapped onto geologic layers, let’s calculate volumes and masses within plume levels.
