Cutting with plume

Cutting with plume_shell

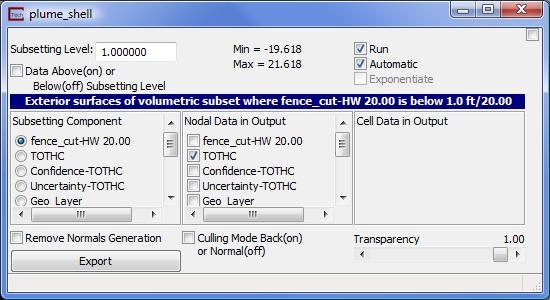

From the module list choose the plume_shell module and change the settings to match those shown in the figure below.

$image\fencecut_plume_shell.jpg$

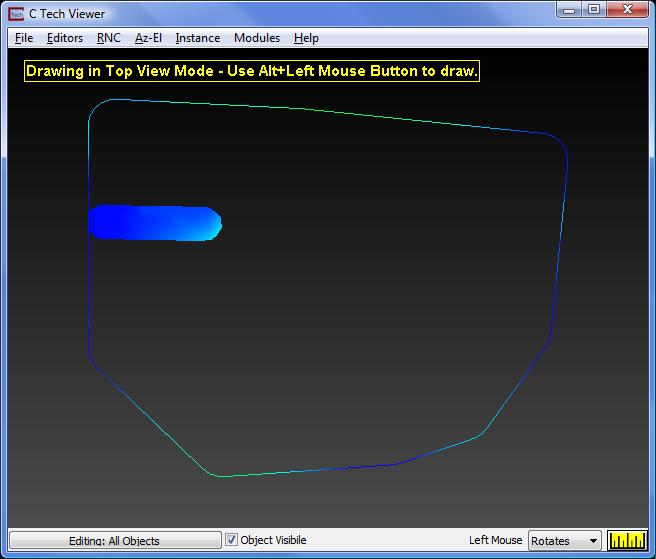

At this point your viewer should be similar to the figure below.

$image\fence_cut_view3.jpg$

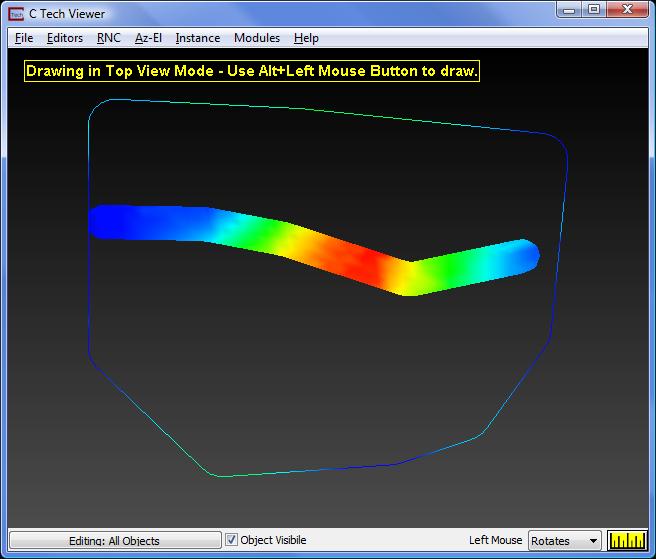

From a top view, this doesn't look like much. But before we change our view, let's draw a few more line segments. Continue drawing until your view is similar to the one below.

To do this, re-open draw_lines' control panel and use your left mouse button to add 3-4 more points.

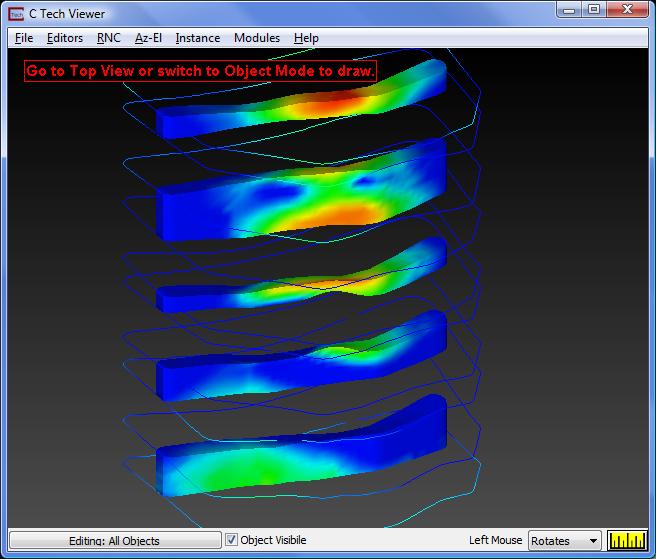

Using the Azimuth & Elevation window, choose a scale factor of 0.7, an elevation of 20, and an azimuth of 210. At this point your viewer should look similar to the figure below.

$image\fence_cut_view4.jpg$

To turn off the red warning message from the draw_lines module, just turn off its "Active" toggle.
