select_data

Select the Explode_and_Scale user interface again and set the Explode Distance to 0 ft. (feet are our user units).

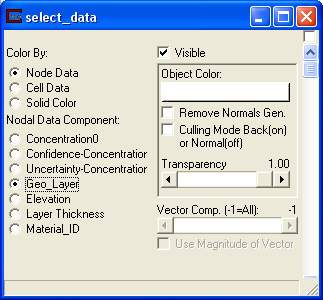

Now we will select the select_data module interface to examine the geology. Choose "Geo Layer" instead of the default Concentration0 data component.

$image\wb_4_130.jpg$

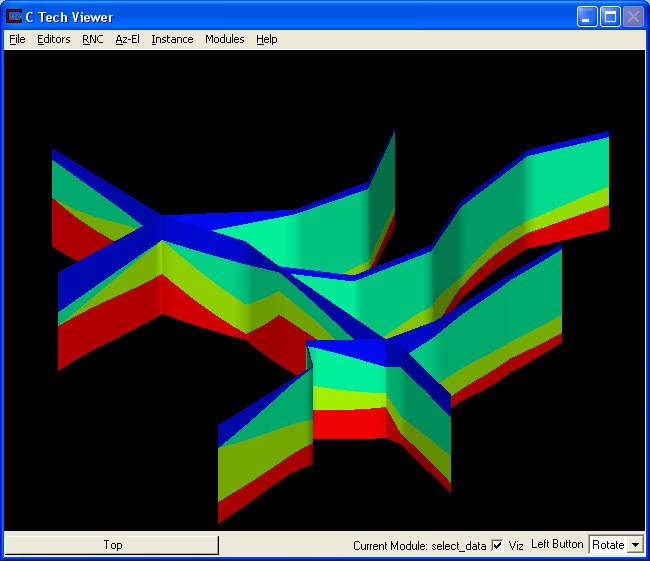

Press the multi-colored (Reset/Normalize/Center) button in Azimuth & Elevation. Your Viewer should look like this:

$image\wb_4_140.jpg$

The default colors are not the most appropriate for geology. Although it is possible to use the Datamap_Editor to set these colors in a variety of ways, we will not do that now.

Go back to the select_data module and reselect the default Concentration0 data component.
